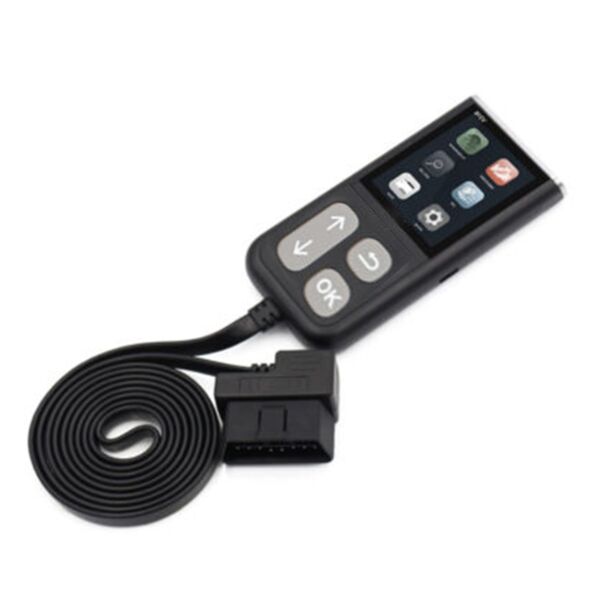

ماسح ضوئي OBD2 أداة تشخيص محرك المركبات المحترفة مع تقنية بلوتوث V316 قارئ أكواد OBD2 أسود

• --Handheld fault diagnosis + Bluetooth-compatible APP dual operation experience, handheld and Bluetooth-compatible 2 in 1
• --Function: Automobile fault diagnosis; Engine trouble light clear; Data flow; Real-time curve; Print function
• --Color screen 320 x 426 display.
• --Support 6 languages: English, German, French, Spanish, Italian, Dutch.
• --Parameter: Working voltage: 12V. Working current: 57mA. Operating environment: -25～70℃. Storage temperature: -25～70℃

Description:
Name: Car Decoder
Color: Black
Material: plastic
Main control chip: MM32L073PF
Working voltage: 12V
Working current: 57mA
Operating environment: -25～70℃
Storage temperature: -25～70℃
supporting agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Packing list:
1 x Car Decoder
